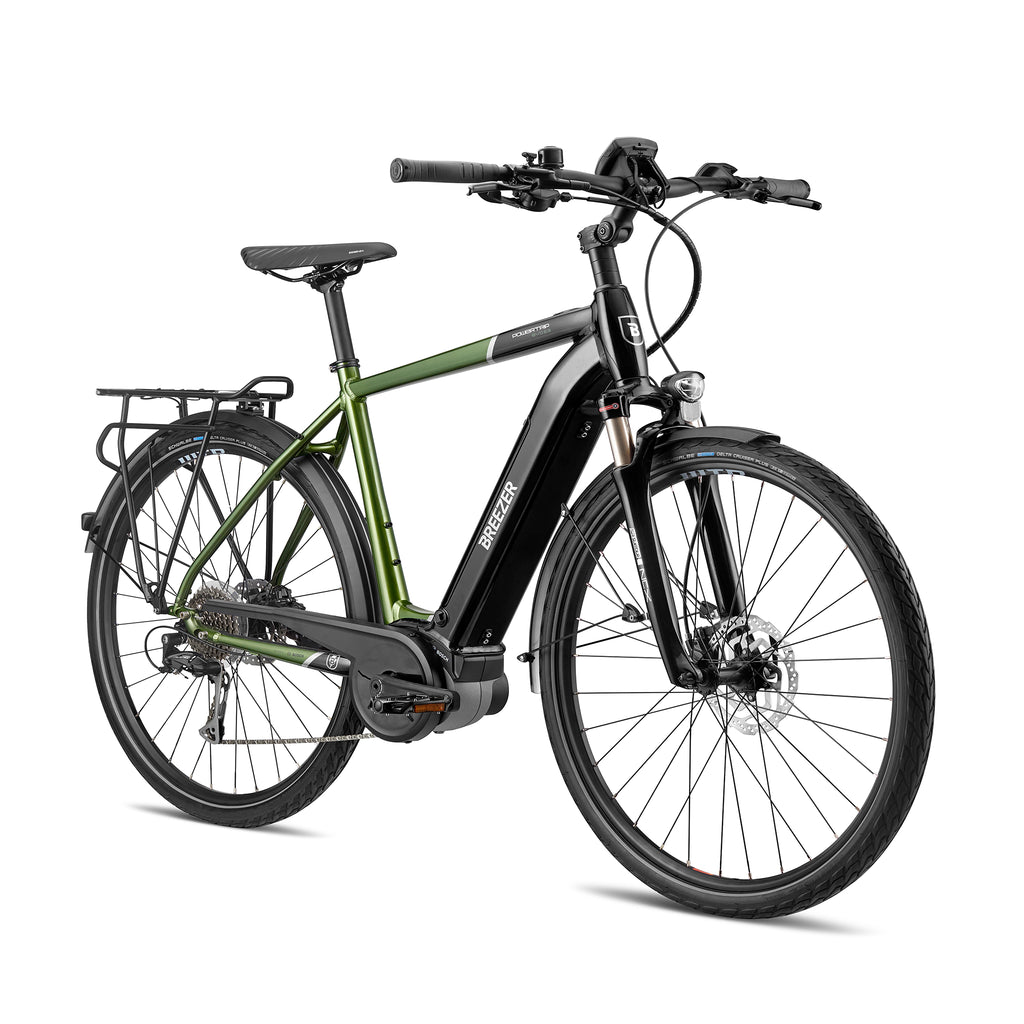

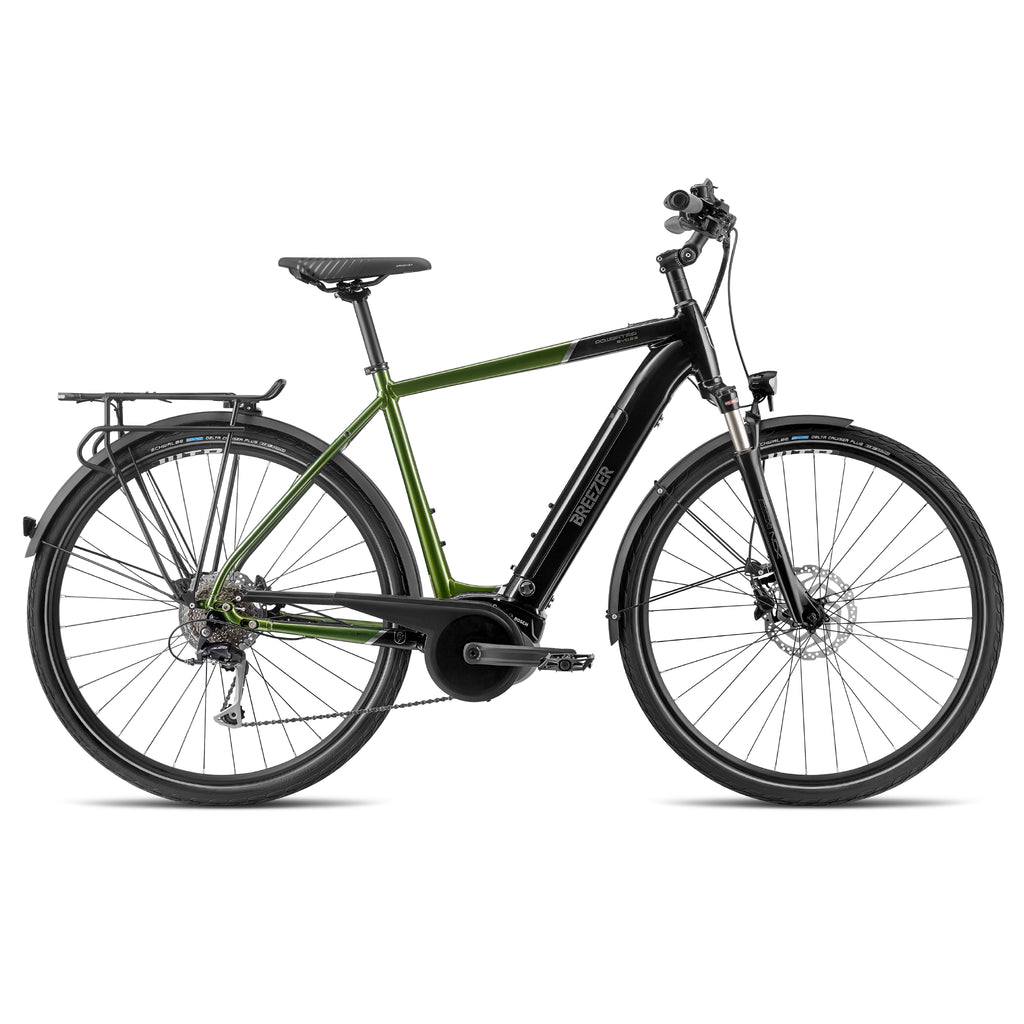

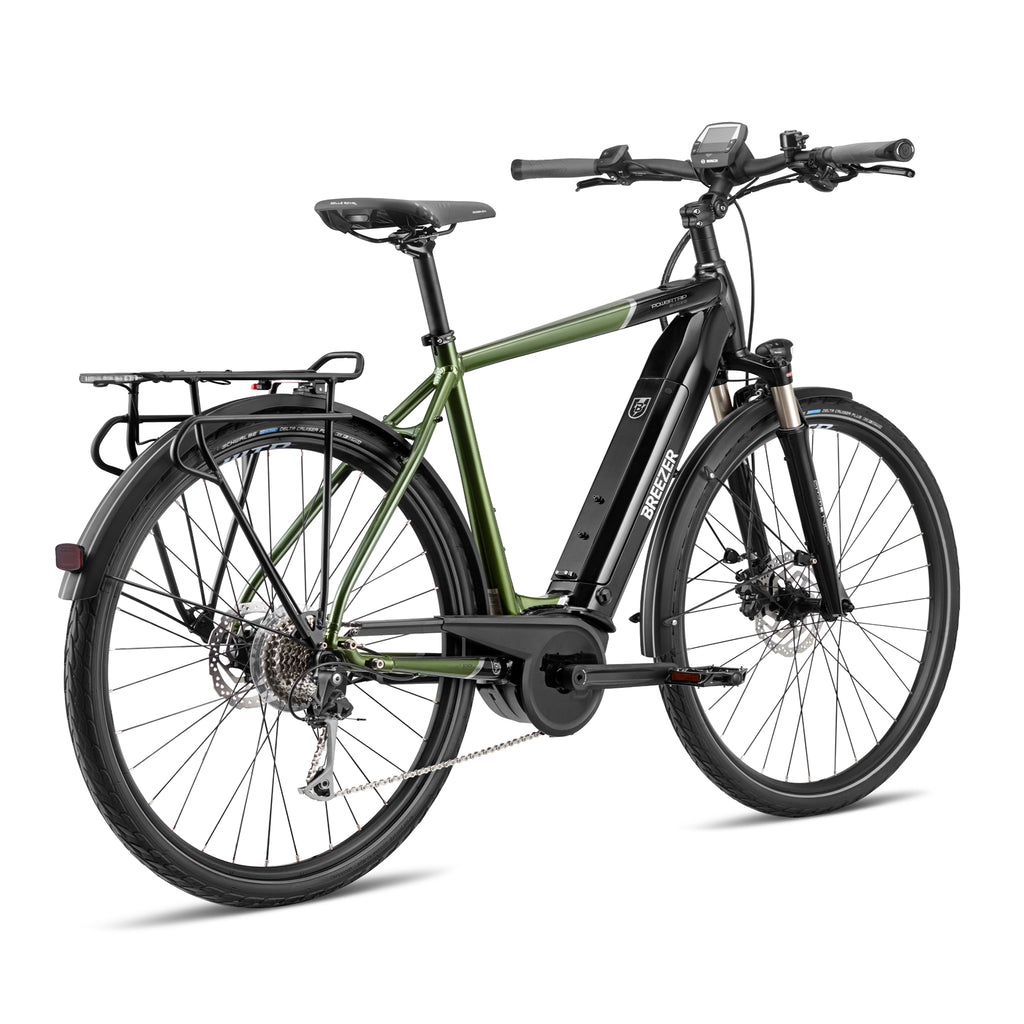

Powertrip EVO 2.3+
$4,499.99
Description
With a wide range of frame and drive-system options the Powertrip series makes it easier than ever to stop watching the world from behind your car’s windshield and start experiencing it as you ride. The Powertrip adds an extra level of comfort with a smooth-riding front suspension fork that helps make pot holes and rough terrain disappear. You can also have the option to choose our versatile low-step frame design which makes getting on and off the bike a breeze. Combined with a long-range battery system and powerful Bosch motor you’ll be sure to find the perfect riding partner within the Powertrip.
Features
• Front suspension forks
• Integrated battery systems
• Bosch drive system
The perfect e-bike for:
In the same way that the SUV has changed how cars can transport people and cargo the Powertrip EVO has helped evolve how easy it is to travel by bike. The Powertrip EVO is perfect for the rider wanting a bike that can handle daily tasks as well as comfortably take them off the beaten path to explore the beauty of remote destinations.
EQUIPPED WITH
EVO Integrated Battery
All premium Breezer EVO e-bike models feature Bosch’s PowerTube system which integrates the battery seamlessly into the frame. The design allows the battery to be charged on the bike and helps protect the battery from external impacts, providing a stylish and durable power system.
Equipped with
Full-Cover Fenders
Form and function! Select models offer full-coverage fenders to give you peace of mind and protection from the elements. Ride to work in the rain or splash through some puddles without getting your clothes dirty.
Equipped with
Rear Cargo Rack
An elegant way for bringing your favorite things with you. Select models include lightweight and sturdy rear cargo racks with optional spring clamps. Perfect for adding a cargo bag or basket for carrying goodies from the market or a change of clothes for riding into school, work or a weekend camping trip.
Specifications
| Sizes | S (45 cm), M (50 cm), L (55 cm), XL (60 cm), XXL (65 cm) |
| Color(s) | Black / forest green |
| Frame | Breezer hydroformed aluminum, down tube for integrated Bosch Power Tube 500Wh battery, Bosch motor interface, custom-tapered aluminum, Breezer Slide-&-Split dropouts |
| Fork | Suntour NCX LO 700C Coil, travel 63mm, hydraulic lockout, steel steerer, 9 x 100mm QR, 30mm stanchions |
| Crankset | Breezer for Bosch gen.3 motors, 44T chainring |
| Pedals | Polished aluminum body, Kraton grip, chromoly axle |
| Rear Derailleur | Shimano Alivio T4000 |
| Shifters | Shimano Altus M2000, Rapid Plus |
| Cassette | Shimano Acera HG201-9, 11-34T |
| Chain | KMC e9Turbo w/ Missing Link, 9-speed |
| Wheelset | Shimano TX505 100 x 9mm CL disc front, Shimano TX505 135 x 9mm CL disc QR rear, 32H hubs, 14g stainless steel spokes, WTB 700c ST i19 TCS 2.0 tubeless compatible aluminum double-wall rims with stainless eyelets |
| Tires | Continental Ride Tour, 47-622, EXTRA Puncture Belt, reflex |
| Brakeset | Shimano MT200 hydraulic disc, rotors: 180mm front, 160mm rear |
| Brake Levers | Shimano MT201-3A hydraulic disc 3 finger lever |
| Headset | FSA 1 1/8", caged bearings |
| Handlebar | 6061 aluminum riser, 15mm rise, 9° sweep, 31.8mm clamp, width: 660mm - S/M, 680mm- L/XL |
| Stem | 3D-Forged 6061 aluminum, 0-60° adjustable rise, 31.8mm clamp |
| Grips | Ergon GP1 |
| Saddle | Selle Royal Essenza Moderate |
| Seatpost | 6061 Alloy micro-adjust, 27.2mm diameter |
| Fenders | SKS Stingray 2, PET, with spoiler, stainless hardware, rear reflector |
| Headlight | Busch + Müller Lumotec Avy, Mirror Optic Beam, 40 Lux, 5-15V, with reflector, crown mounted |
| Taillight | Herrmans H-Gargo Narrow, integrated with rear carrier |
| Rear Carrier | Standwell tubular aluminum, with CarryMore platform and spring clamp, integrated rear light |
| Drive Unit | Bosch Active Plus, 3th generation mid-motor, 250W rated power, 50Nm of torque, 25km/h maximum assist |
| Battery | Bosch Power Tube 500Wh with 2A charger |
| Display | Bosch Intuvia |
| Accessories | Chainguard, Standwell alloy kickstand, bell |
Due to COVID related supply chain issues component specification could change at any time without notice.

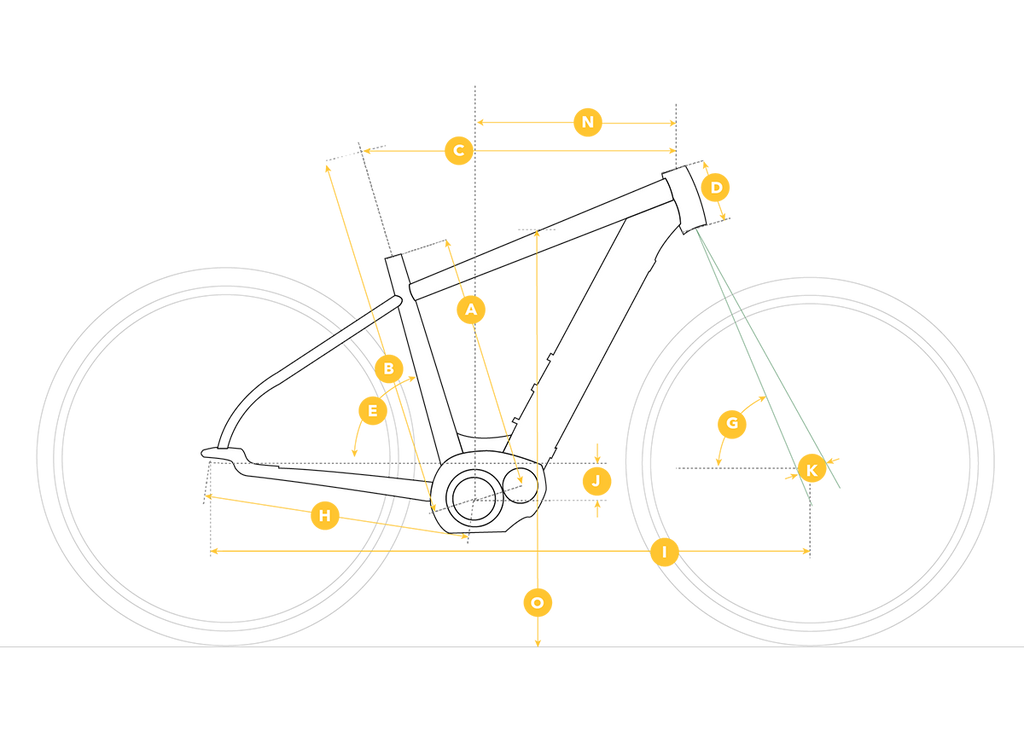

Geometry
| Size | S | M | L | XL | XXL | ||||||
| Bike size | 45cm | 50cm | 55cm | 60cm | 65cm | ||||||
| A | Seat Tube C to T | 450 | 500 | 550 | 600 | 650 | |||||
| B | Seat Tube Effective | 610 | 612 | 634 | 622 | 620 | |||||
| C | Top Tube Effective | 566 | 575 | 580 | 610 | 620 | |||||
| D | Head Tube Length | 120 | 130 | 140 | 150 | 160 | |||||
| E | Seat Tube Angle / Actual | 74 | 74 | 74 | 74 | 74 | |||||
| G | Headtube Angle | 70.5 | 71.5 | 71.5 | 71.5 | 71.5 | |||||
| H | Chainstay Length | 475 | 475 | 475 | 475 | 475 | |||||
| I | Wheelbase | 1081 | 1085 | 1085 | 1116 | 1126 | |||||
| J | BB Drop | 60 | 60 | 60 | 60 | 60 | |||||
| K | Fork Offset | 45 | 45 | 45 | 45 | 45 | |||||
| L | Trail | ||||||||||
| M | Stack | 610 | 622 | 633 | 643 | 652 | |||||
| N | Reach | 363 | 368 | 370 | 397 | 404 | |||||
| O | Standover | 765 | 804 | 840 | 858 | 881 | |||||
| Stem | 95 | 95 | 110 | 110 | 110 | ||||||
| Handlebar Width | 630 | 630 | 630 | 630 | 630 | ||||||
| Crank | 170 | 170 | 175 | 175 | 175 | ||||||
| Wheel Size | 28" | 28" | 28" | 28" | 28" | ||||||
| Seat Post Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
