Radar X Pro
$1,999.99
Description

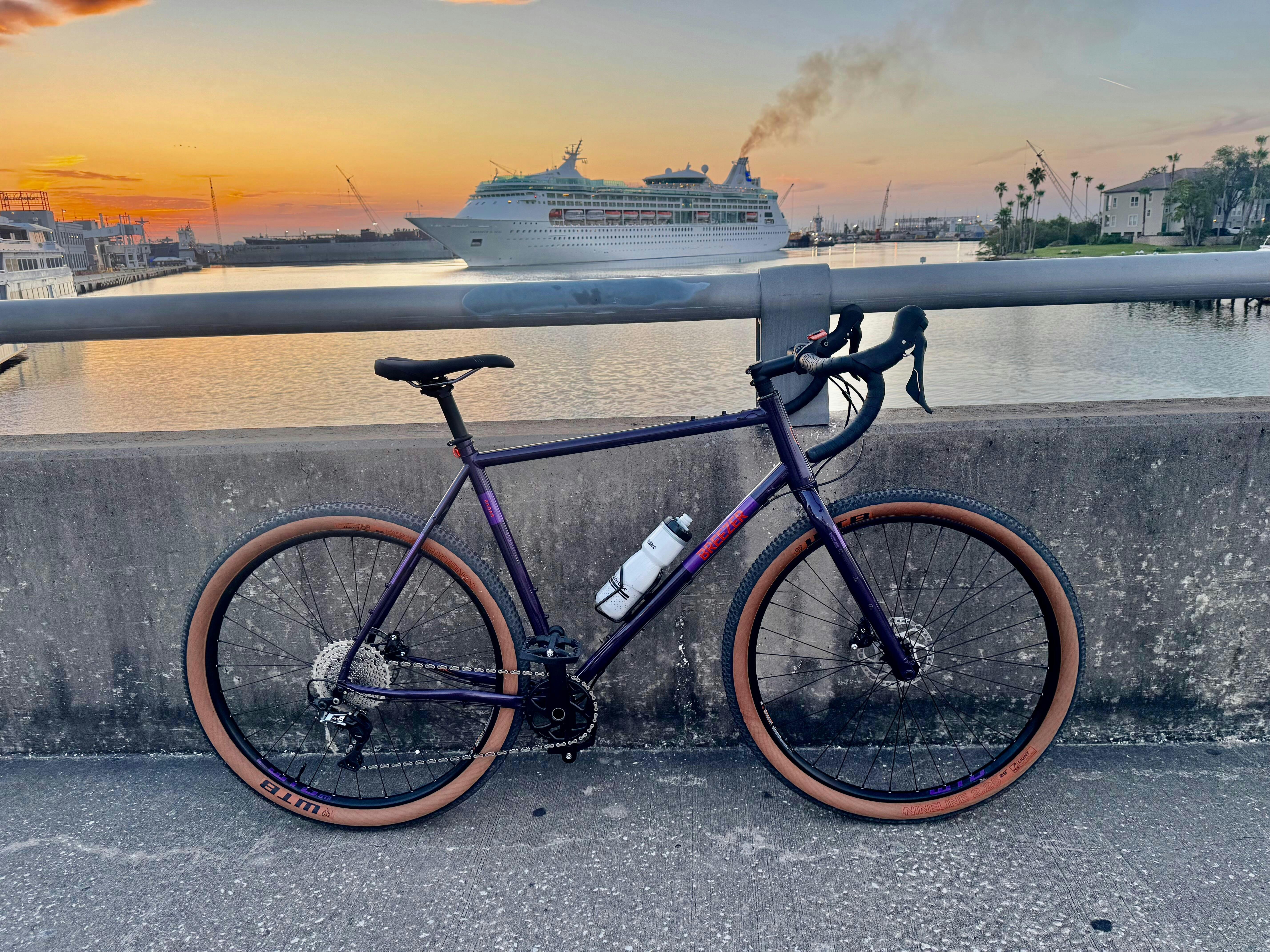

If you’re a fan of drop bars on dirt trails, then the RADAR X is the bike for you. Built on a supple steel frame and fork with 29” x 2.0” tires the RADAR X smooths out rough trails and gravel roads. The frame & fork feature multiple braze-ons for bags and bottle mounts so you can load out on epic bikepacking adventures as well. If you are looking for a ride for ripping singletrack or exploring far into the wild the RADAR X has you covered.
Features
• Breezer off road capable geometry
• Butted CrMo with English threaded bottom bracket
• Compatible with off road tires
• Ready for racks and extra bottle cages
• Tubeless-compatible wheelset
• Tire clearance: 29"x24"
The perfect adventure bike for:
The rider needing a do-it-all bike to tackle any terrain. Whether it's battling potholes or navigating mountain passes, the Radar series is built for the rider who doesn't want to be limited to the pavement.
engineered with
Compact Geometry
Joe's compact geometry allows riders to enjoy greater standover clearance for navigating technical terrain, shave weight off the frame, and allow for a wider range of adjustability for riders of different sizes.
Made with
Breezer Steel
The staple material for most Breezer bikes, Breezer Steel 4130 Chromo offers incredible durability, excellent shock-absorbing qualities, and fully-butted tube walls for reduced weight.
Equipped with
Multiple Mounts
Designed to be customized for your adventure Breezer's multi-mount technology allows options for waterbottle cages, racks, and fenders.
Equipped with
Breeze-In Dropouts
The iconic Breeze-in dropouts create increased strength and ridigity in the rear triangle and offers a lighter weight alternative to standard dropouts.
Specifications
| Sizes | Compact: XS (45cm), S (48cm), M (51cm), L (54cm), XL (57cm), XXL (60cm) |
| Color(s) | Deep Purple |
| Frame | Breezer butted chromoly steel, BSA threaded BB, Boost 148mm thru-axle |
| Fork | Chromoly disc, rack / fender & side bottle mounts, Boost 110 x 15mm thru-axle |
| Crankset | FSA Afterburner Modular DM, 38T or Prowheel MPX Direct Mount 38T |
| Bottom Bracket | FSA Mega-Exo BSA or Prowheel BSA 73mm |
| Pedals | N/A |
| Rear Derailleur | Shimano GRX 812, long cage |
| Shifters | Shimano GRX 600, 1x11-speed |
| Cassette | Shimano Deore, 11-42T, 11-speed |
| Chain | KMC X11, 11spd |
| Wheelset | WTB ST i23 TCS disc, tubeless compatible, Formula sealed bearing hubs, 14g SS spokes, 32H |
| Tires | WTB Nineline TCS, 29 x 2.25, TCS Tubeless Ready, Lightweight Casing, Dual DNA Compound |
| Brakeset | Shimano GRX hydraulic, 160mm rotors |
| Brake Levers | Shimano GRX |
| Headset | FSA 1 1/8" Semi-Integrated, 36° ACB-sealed, 6.5mm aluminum top cover |
| Handlebar | Breezer Big Bar, 6061 alloy, 31.8mm clamp, 46-50cm width, 12° flare |
| Stem | Breezer B-Road, 3D-forged 6061 stem body, +/-7° |
| Tape | Selle San Marco Presa Corsa Dynamic |
| Saddle | Selle San Marco RND Start Up |
| Seatpost | Breezer setback, 6061 alloy, 30.9mm diameter |
| Weight | tbd |
Due to COVID related supply chain issues component specification could change at any time without notice.
Geometry
| Size(*Compact Frame) | XS | S | M | L | XL | XXL | |||||
| Bike Size(*Compact Frame) | 45cm | 48cm | 51cm | 54cm | 57cm | 60cm | |||||
| A | Seat Tube, Center to Top | 450 | 480 | 510 | 540 | 570 | 600 | ||||
| C | Top Tube, Effective | 580 | 590 | 600 | 610 | 623 | 642 | ||||
| D | Head Tube Length | 120 | 120 | 155 | 170 | 170 | 190 | ||||
| E | Seat Tube Angle | 74° | 73.5° | 73° | 73° | 73° | 73° | ||||
| G | Head Tube Angle | 69° | 69° | 69° | 69° | 69° | 69° | ||||
| H | Chainstay Length | 444 | 444 | 444 | 444 | 444 | 444 | ||||
| I | Wheelbase | 1099 | 1103 | 1110 | 1122 | 1136 | 1155 | ||||
| J | Bottom Bracket Drop | 75 | 75 | 75 | 75 | 75 | 75 | ||||
| K | Fork Offset | 51 | 51 | 51 | 51 | 51 | 51 | ||||
| M | Stack | 568 | 568 | 601 | 615 | 615 | 633 | ||||
| N | Reach | 417 | 421 | 421 | 422 | 435 | 448 | ||||
| O | Standover | 775 | 788 | 818 | 839 | 853 | 872 | ||||
| Stem mm | 70 | 70 | 80 | 80 | 80 | 90 | |||||
| Handlebar Width cm | 48 | 48 | 50 | 50 | 50 | 50 | |||||
| Crank mm | 170 | 170 | 175 | 175 | 175 | 175 | |||||
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c | |||||
| Seat Post Diameter mm | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 |
