Radar Team
Estimated Arrival: Late Spring
Radar A system for detecting the presence, direction, distance, and speed of surrounding conditions.
The dirt is your environment. Radar is your frequency for feeling it. Agile, composed, sharp, and rugged, Radar is an apparatus for experience. If you want to unplug from the machine and remember what it means to explore the wild, this is your signal.
- Off-road geometry in butted chromoly steel.

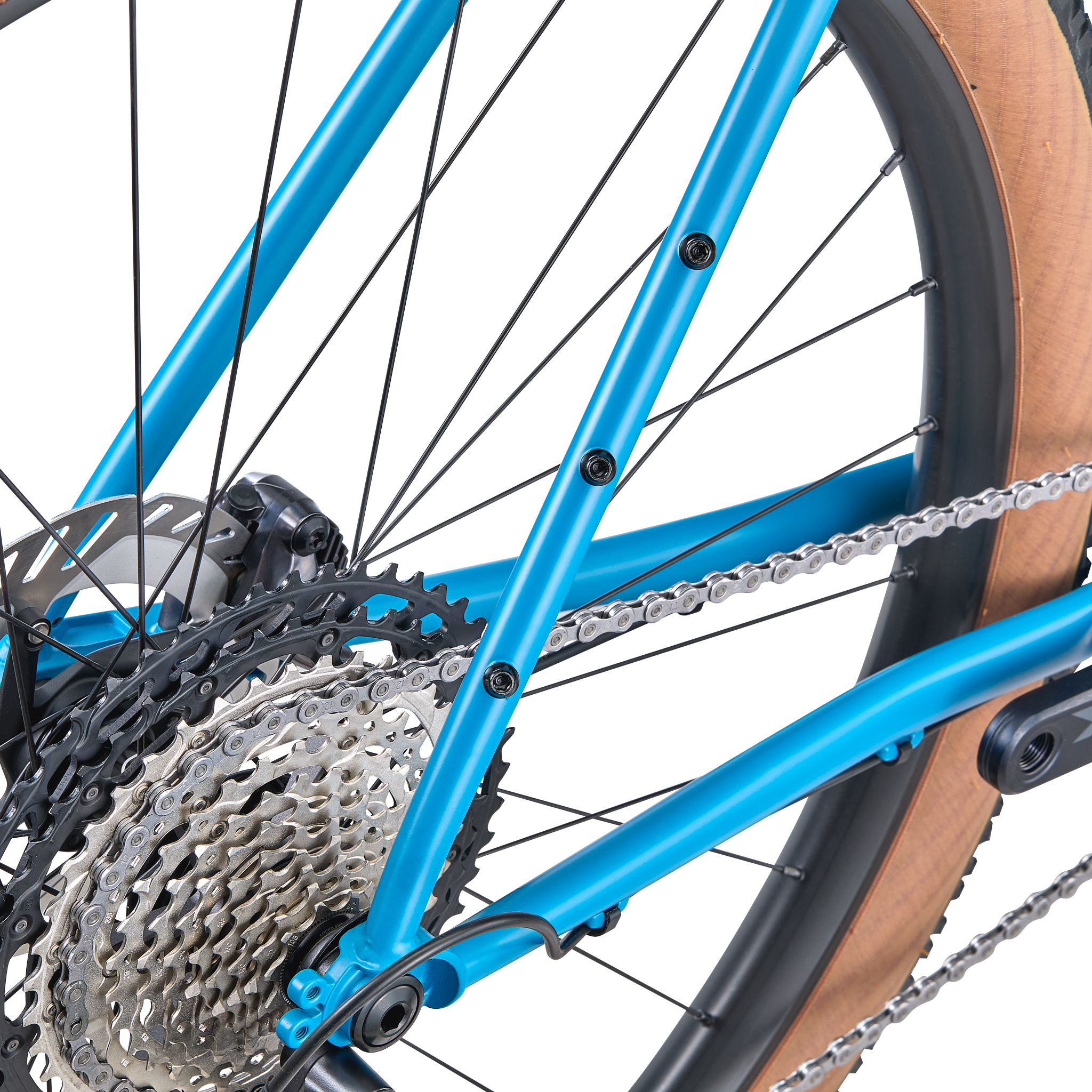

- 3 pack mounts on down tube, fork legs and chainstay. Bottle mounts on seat tube and downtube. Bento box mount on top tube. Fender and rack mounts. Bring it on.
- Shimano GRX 822, 12 speed drivetrain with 10-51T Deore XT cassette.
- WTB tubeless ready tires & rims.
- Clears up to 29” x 2.4” tires.
Equipment - Radar Team
Specifications
FRAME & FORK
Frame: Breezer 4130 Butted Chromoly Steel, tapered head tube 1 1/8" to 1 1/2", 148mm rear spacing, UDH compatible, three pack mount on top of down tube and driveside seatstay, bottle mount on seat tube and bottom of down tube, bento box mount on to tube,fender and rear rack mount, flat mount disc brake
Fork: Breezer 4130 Chromoly, tapered 1 1/8 to 1 1/2 steerer tube, three pack mount on each fork leg, fender mount, 15 x 110 thru axle drop out, 51mm offset, flat mount disc brake
DRIVETRAIN
Crankset: Shimano SLX 170mm XS-L, 175mm XL-XXL, 34T
BB: Shimano RS501
Rear Derailleur: Shimano GRX 822 Shadow Plus, 12 speed
Shifters: Shimano GRX 820
Cassette: Shimano Deore XT 10-51T
Chain: KMC x12 EPT Anti Rust
WHEELSET
Rims: WTB ST i30 TCS 2.0, 32H, tubeless ready
Spokes: Pillar, 14 gauge, butted
Front Hub: KT, sealed cartridge bearing, Center Lock
Rear Hub: KT, sealed cartridge bearing, Center Lock, Microspline
Tires: WTB Nineline 29 x 2.25 TCS Light/Fast rolling 60 TPI
BRAKES
Brakes: Shimano GRX 820
Brake Levers: Shimano GRX 820

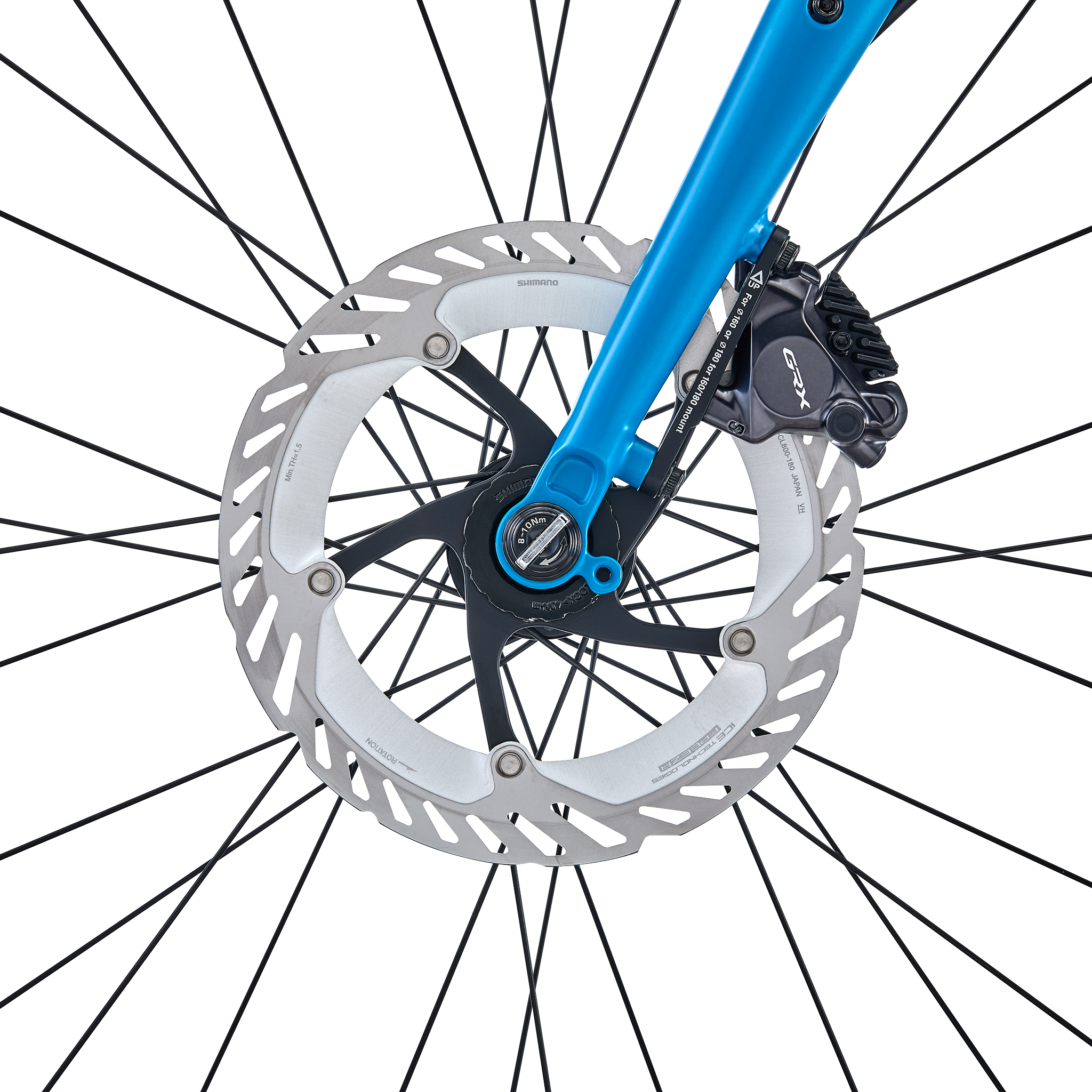

Front Rotor: Shimano RT-CL800 Centerlock 180mm

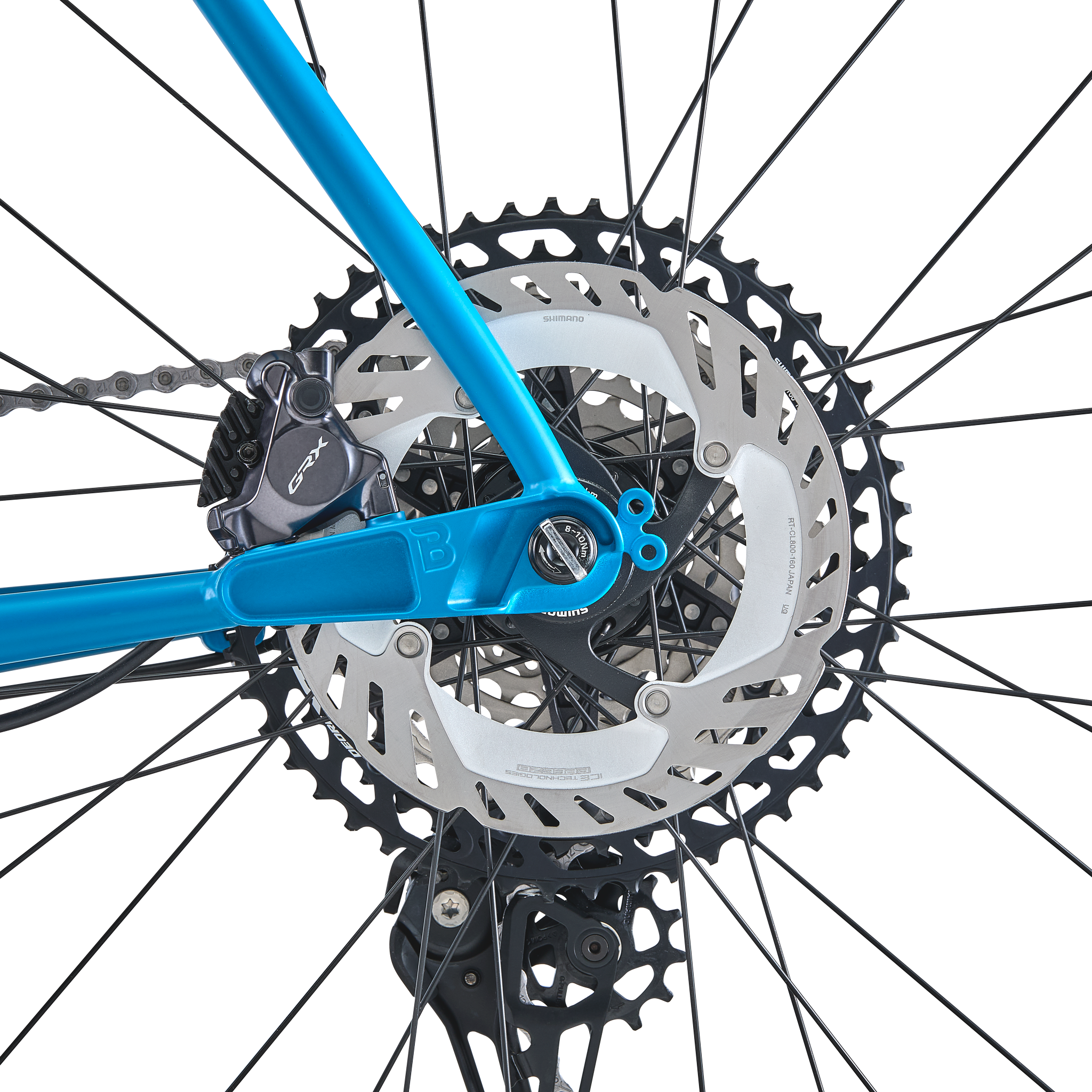

Rear Rotor: Shimano RT-CL800 Centerlock 160mm
COCKPIT & CONTACT POINTS
Handlebar: Alloy, 460mm width XS-S, 480mm width M-XXL, 31.8mm clamp diamter
Grips: Black anti-slip tape
Stem: 3D forged alloy, +/- 7°, 70mm XS-S, 80mm M-L, 90mm XL-XXL. 31.8 clamp
Headset: FSA
Saddle: WTB Solano medium, chromoly rail
Seatpost: Alloy 30.9 x 350mm XS-L, 400mm XL-XXL
Seatpost Clamp: Alloy
FIT & DETAILS
Color: Cold Front (Matte Blue)
Weight: 29.5 lbs (size large)
