Radar Team
Radar A system for detecting the presence, direction, distance, and speed of surrounding conditions.
The dirt is your environment. Radar is your frequency for feeling it. Agile, composed, sharp, and rugged, Radar is an apparatus for experience. If you want to unplug from the machine and remember what it means to explore the wild, this is your signal.
- Off-road geometry in 4130 butted chromoly steel
- 4130 chromoly steel fork
All the mounts! 3 pack mounts on down tube, fork legs and chainstay. Bottle mounts on seat tube and bottom of downtube. Bento box mount on top tube. Fender and rack mounts. - Shimano GRX 822, 12 speed drivetrain w/ 10-51T Deore XT cassette
- WTB tubeless ready tires and rims
- Boost hub spacing
- Clears up to 29” x 2.4” tires
Built for bikepacking, mountain touring, rough dirt, and off-road exploration, Radar is a go-anywhere platform for riders who prefer the path less traveled.
Breezer Bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow the assembly video and take your time, you can build the bike yourself.
Watch Assembly Video
Full Equipment: Radar Team
Specifications
FRAME & FORK
Frame: Breezer 4130 Butted Chromoly Steel, tapered head tube 1 1/8" to 1 1/2", 148mm rear spacing, UDH compatible, three pack mount on top of down tube and driveside seatstay, bottle mount on seat tube and bottom of down tube, bento box mount on to tube,fender and rear rack mount, flat mount disc brake
Fork: Breezer 4130 Chromoly, tapered 1 1/8 to 1 1/2 steerer tube, three pack mount on each fork leg, fender mount, 15 x 110 thru axle drop out, 51mm offset, flat mount disc brake
DRIVETRAIN
Crankset: Shimano SLX 170mm XS-L, 175mm XL-XXL, 34T
BB: Shimano RS501
Rear Derailleur: Shimano GRX 822 Shadow Plus, 12 speed
Shifters: Shimano GRX 820
Cassette: Shimano Deore XT 10-51T
Chain: KMC x12 EPT Anti Rust
WHEELSET
Rims: WTB ST i30 TCS 2.0, 32H, tubeless ready
Spokes: Pillar, 14 gauge, butted
Front Hub: KT, sealed cartridge bearing, Center Lock
Rear Hub: KT, sealed cartridge bearing, Center Lock, Microspline
Tires: WTB Nineline 29 x 2.25 TCS Light/Fast rolling 60 TPI
BRAKES
Brakes: Shimano GRX 820
Brake Levers: Shimano GRX 820
Front Rotor: Shimano RT-CL800 Centerlock 180mm
Rear Rotor: Shimano RT-CL800 Centerlock 160mm
COCKPIT & CONTACT POINTS
Handlebar: Alloy, 460mm width XS-S, 480mm width M-XXL, 31.8mm clamp diameter
Grips: Black anti-slip tape
Stem: 3D forged alloy, +/- 7°, 70mm XS-S, 80mm M-L, 90mm XL-XXL. 31.8 clamp
Headset: FSA
Saddle: WTB Solano medium, chromoly rail
Seatpost: Alloy 30.9 x 350mm XS-L, 400mm XL-XXL
Seatpost Clamp: Alloy, 35mm
FIT & DETAILS
Color: Cold Front (Matte Blue)
Weight: 29.5 lbs (Size Large)
Geometry
XS (48cm)
Seat Tube (C–T): 480
Effective Top Tube: 580
Head Tube Length: 120
Seat Tube Angle: 74°
Head Tube Angle: 69°
Chainstay: 444
Wheelbase: 1098.9
BB Drop: 75
Fork Offset: 51
Stack: 571.1
Reach: 416.2
Standover: 779
Wheel Size: 29”
Seat Post Diameter mm: 30.9
Rider Min Height: 5'0”
Rider Max Height: 5'3"
S (52cm)
Seat Tube (C–T): 520
Effective Top Tube: 590
Head Tube Length: 140
Seat Tube Angle: 73.5°
Head Tube Angle: 69°
Chainstay: 444
Wheelbase: 1105.2
BB Drop: 75
Fork Offset: 51
Stack: 589.8
Reach: 415.3
Standover: 811
Wheel Size: 29”
Seat Post Diameter mm: 30.9
Rider Min Height: 5'3”
Rider Max Height: 5'7"
M (54cm)
Seat Tube (C–T): 540
Effective Top Tube: 600
Head Tube Length: 155
Seat Tube Angle: 73°
Head Tube Angle: 69°
Chainstay: 444
Wheelbase: 1110.6
BB Drop: 75
Fork Offset: 51
Stack: 603.8
Reach: 415.4
Standover: 828
Wheel Size: 29”
Seat Post Diameter mm: 30.9
Rider Min Height: 5'8”
Rider Max Height: 5'10"
L (56cm)
Seat Tube (C–T): 560
Effective Top Tube: 610
Head Tube Length: 170
Seat Tube Angle: 73°
Head Tube Angle: 69°
Chainstay: 444
Wheelbase: 1121.7
BB Drop: 75
Fork Offset: 51
Stack: 617.8
Reach: 421.1
Standover: 845
Wheel Size: 29”
Seat Post Diameter mm: 30.9
Rider Min Height: 5'10”
Rider Max Height: 6'0"
XL (58cm)
Seat Tube (C–T): 580
Effective Top Tube: 620
Head Tube Length: 180
Seat Tube Angle: 73°
Head Tube Angle: 69°
Chainstay: 444
Wheelbase: 1132.5
BB Drop: 75
Fork Offset: 51
Stack: 627.1
Reach: 428.3
Standover: 859
Wheel Size: 29”
Seat Post Diameter mm: 30.9
Rider Min Height: 6'0”
Rider Max Height: 6'2"
XXL (60cm)
Seat Tube (C–T): 600
Effective Top Tube: 640
Head Tube Length: 190
Seat Tube Angle: 73°
Head Tube Angle: 69°
Chainstay: 444
Wheelbase: 1153.2
BB Drop: 75
Fork Offset: 51
Stack: 636.5
Reach: 445.4
Standover: 874
Wheel Size: 29”
Seat Post Diameter mm: 30.9
Rider Min Height: 6'2”
Rider Max Height: 6'5"
The Radar Maintains Signal
When conditions interfere, Radar keeps the report clear.
Receiving and transmitting keeps you comfortable as traction drops, temperatures fall, and the air itself will leave you frozen.

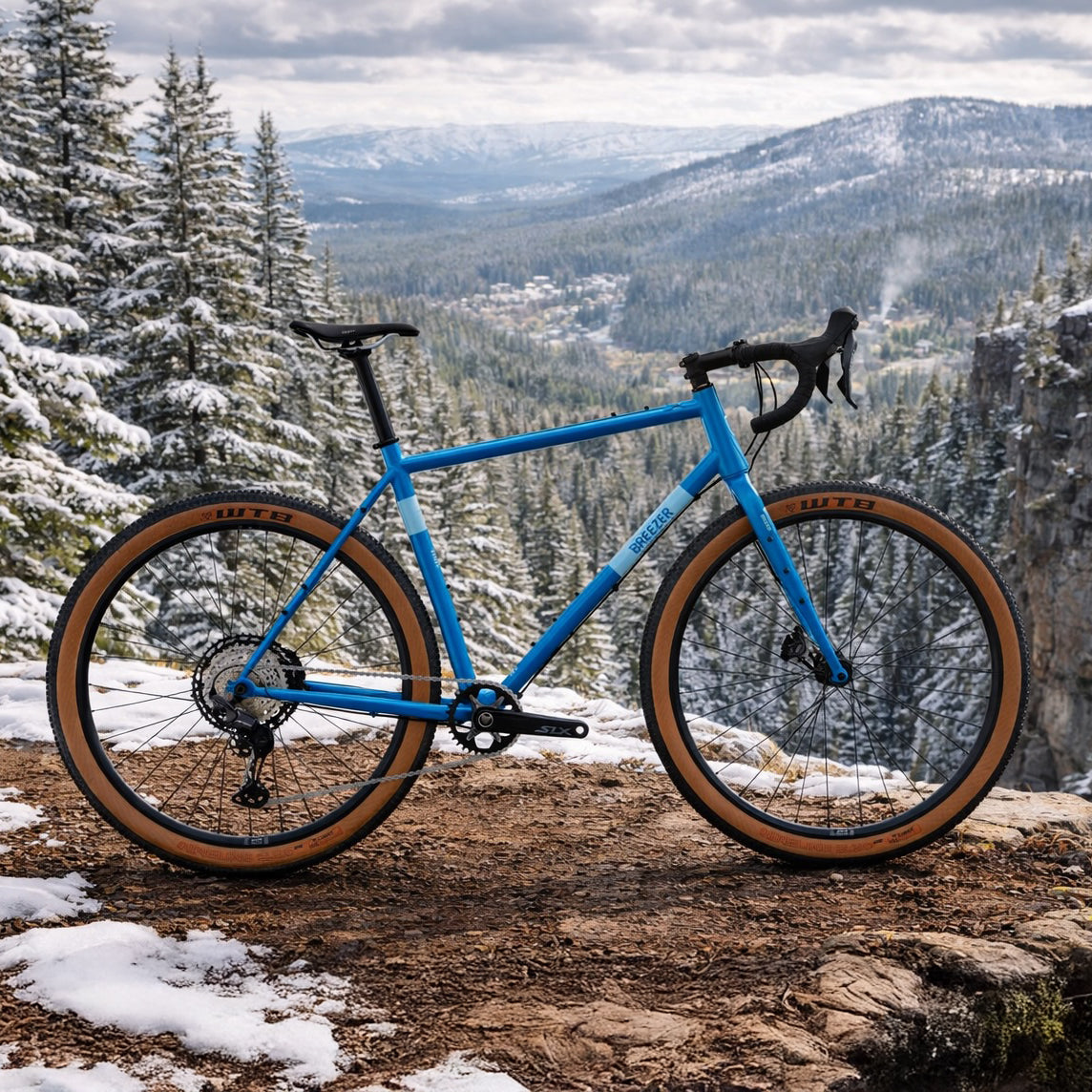

Off-Road Geometry in Butted Chromoly Steel
A cool steel chassis tuned for dirt-first riding.
Balanced geometry keeps the ride calm at speed and confident as weather and terrain transition unexpectedly. An English-threaded bottom bracket ensures long-term serviceability wherever the report leads.

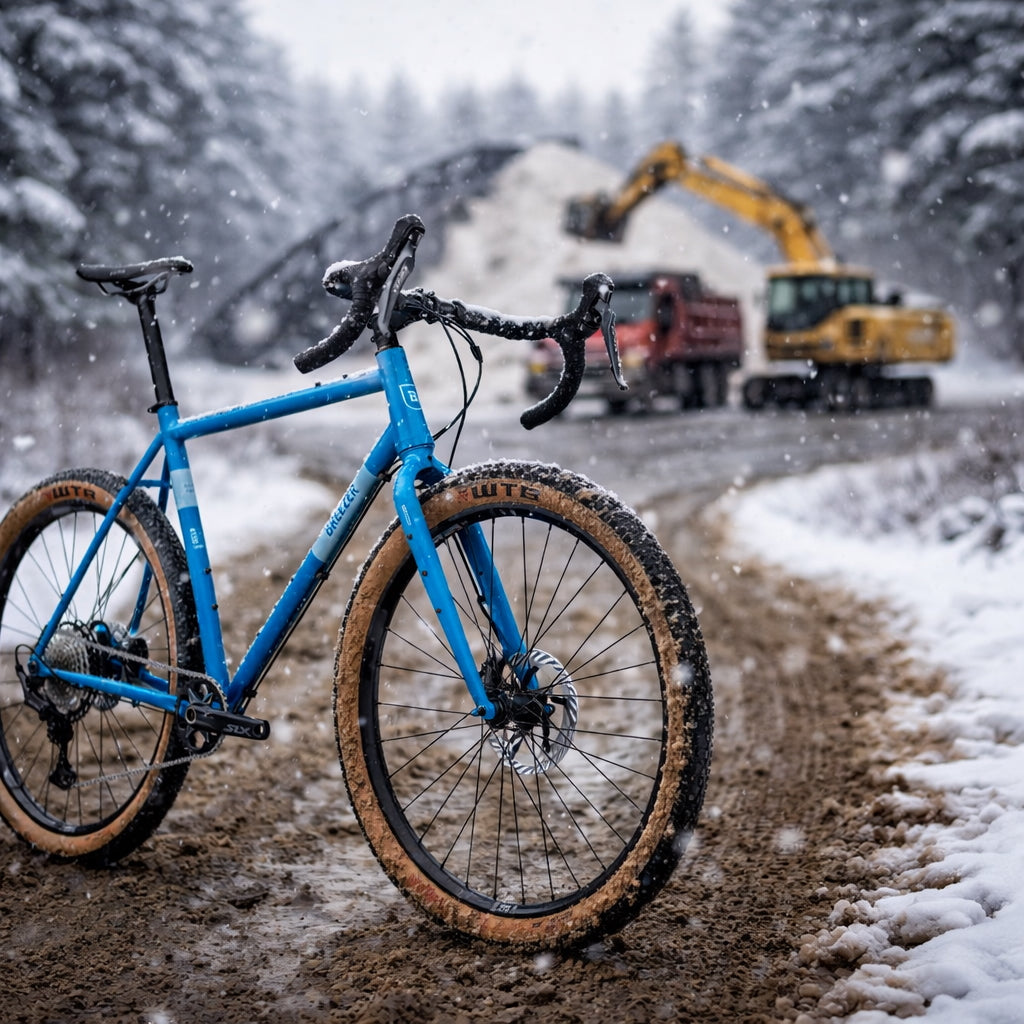

Stability Through Freeze and Thaw
A grounded stance for surfaces under constant treatment.
A navigable road takes tons of work. Brine runs off, traction comes and goes, and the surface keeps changing beneath you. Tubeless-ready WTB rims and wide 29 X 2.25" WTB Nineline tires maintain traction through that pattern, with clearance for up to a 29 x 2.4” tire when conditions demand more. Freeze and thaw aren’t conditions—they’re a cycle.

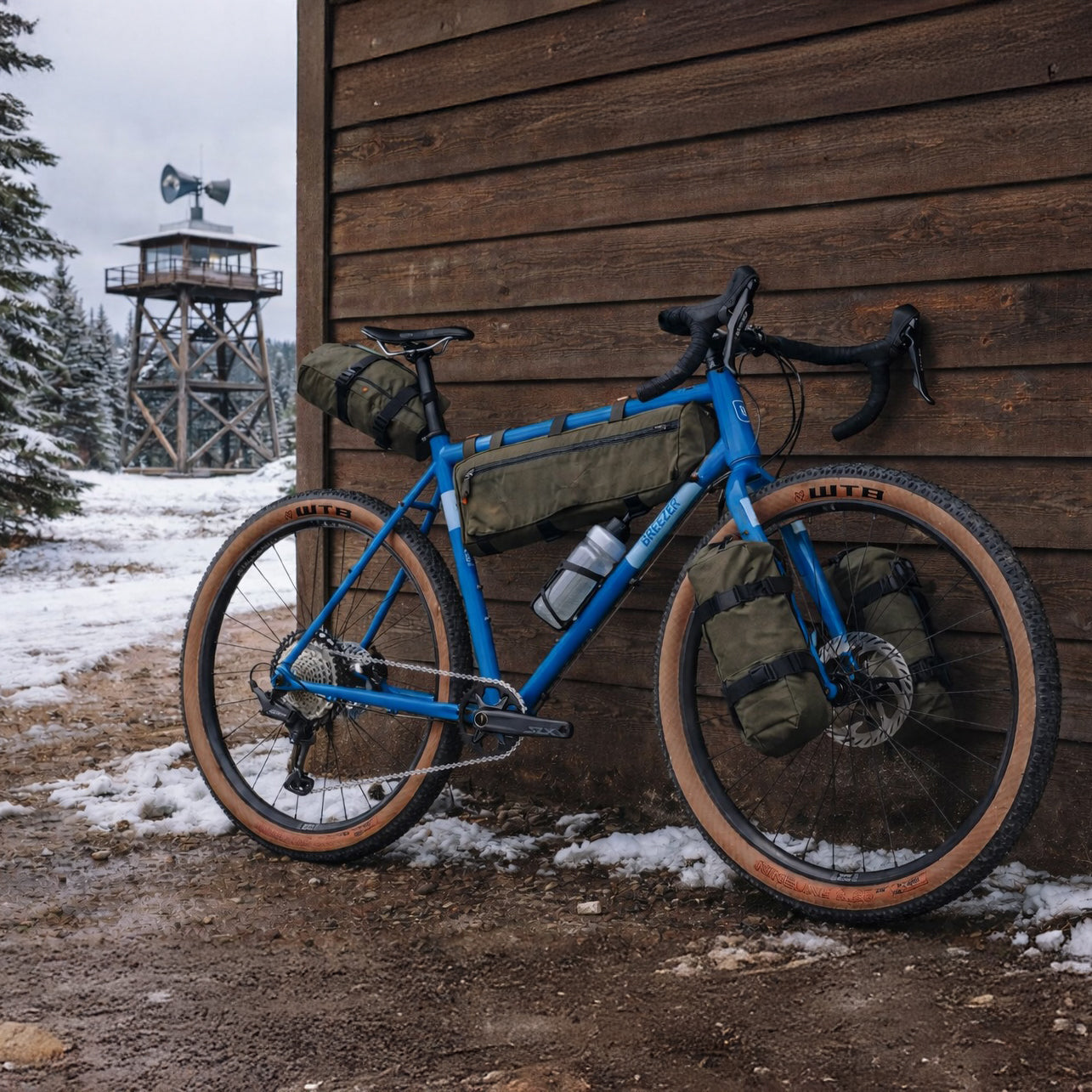

Equipped for Extended Coverage
Built to support a wide range of field operations.
Five bottle cage mounts, rack and fender mounts, and triple-mount positions on the seat stay and fork allow our Radar Team to carry the equipment needed to stay on assignment longer. From water and tools to bags and supplies, the system is designed to adapt to changing demands without compromising mobility or focus.
Signal in Motion
A dependable transmission built for sustained forward progress.
A Shimano GRX 822 GS rear derailleur paired with a wide-range Shimano Deore 10–51T cassette delivers smooth, reliable drive across varied terrain and long routes. A Shimano SLX 34T crankset keeps cadence controlled and power predictable, resulting in a drivetrain designed to move the team forward without interruption.
Off-Road Geometry in Butted Chromoly Steel
A cool steel chassis tuned for dirt-first riding.
Balanced geometry keeps the ride calm at speed and confident as weather and terrain transition unexpectedly. An English-threaded bottom bracket ensures long-term serviceability wherever the report leads.
Stability Through Freeze and Thaw
A grounded stance for surfaces under constant treatment.
A navigable road takes tons of work. Brine runs off, traction comes and goes, and the surface keeps changing beneath you. Tubeless-ready WTB rims and wide 29 X 2.25" WTB Nineline tires maintain traction through that pattern, with clearance for up to a 29 x 2.4” tire when conditions demand more. Freeze and thaw aren’t conditions—they’re a cycle.
Equipped for Extended Coverage
Built to support a wide range of field operations.
Five bottle cage mounts, rack and fender mounts, and triple-mount positions on the seat stay and fork allow our Radar Team to carry the equipment needed to stay on assignment longer. From water and tools to bags and supplies, the system is designed to adapt to changing demands without compromising mobility or focus.
Signal in Motion
A dependable transmission built for sustained forward progress.
A Shimano GRX 822 GS rear derailleur paired with a wide-range Shimano Deore 10–51T cassette delivers smooth, reliable drive across varied terrain and long routes. A Shimano SLX 34T crankset keeps cadence controlled and power predictable, resulting in a drivetrain designed to move the team forward without interruption.
The Radar Network

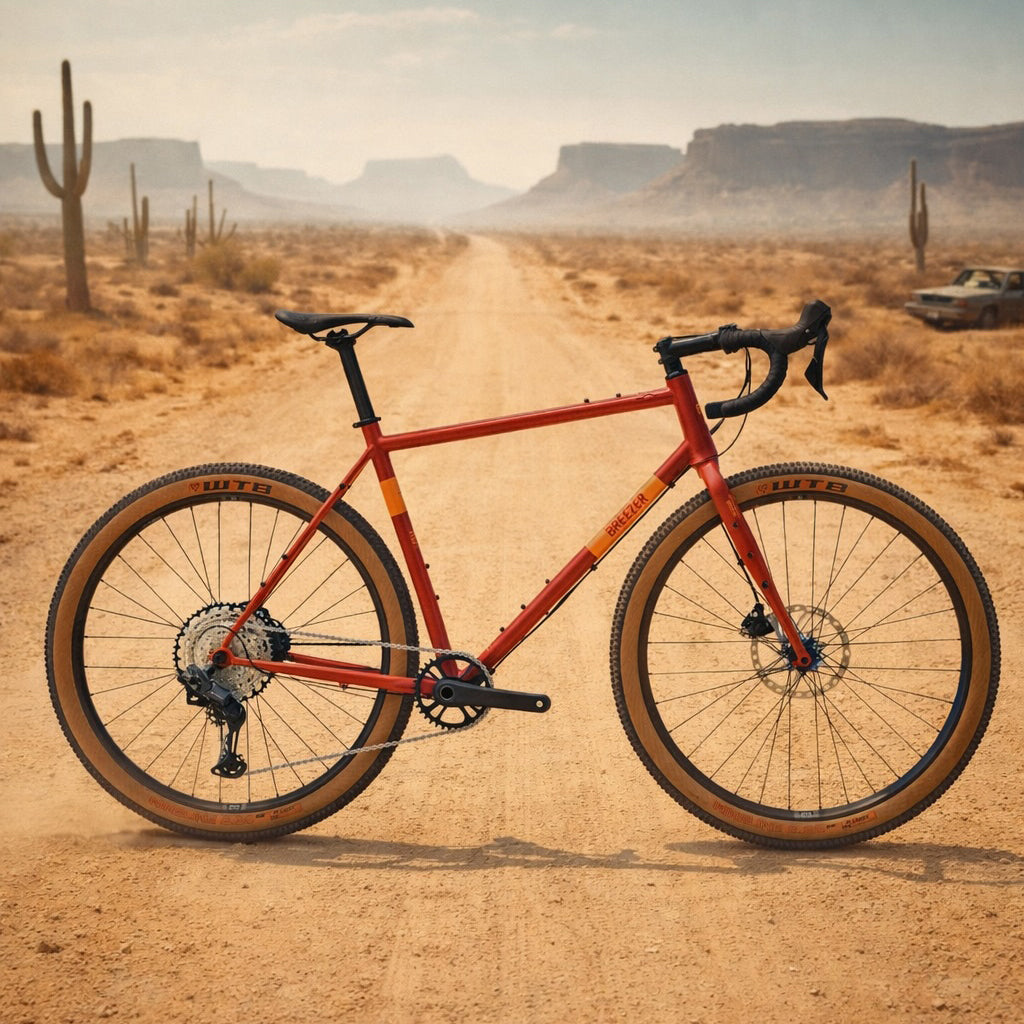

Radar Pro
