Radar Sport
Radar: A system for detecting the presence, direction, distance, and speed of surrounding conditions.
The dirt is your environment. Radar is your frequency for feeling it. Agile, composed, sharp, and rugged, Radar is an apparatus for experience. If you want to unplug from the machine and remember what it means to explore the wild, this is your signal.
- Off-road geometry in 4130 butted chromoly steel
- 4130 chromoly steel fork
All the mounts! 3 pack mounts on down tube, fork legs and chainstay. Bottle mount on seat tube and bottom of downtube. Bento box mount on top tube. Fender and rack mounts. - Shimano Deore, 12 speed drivetrain w/ 10-51T Deore cassette
- Boost hub spacing
- WTB tubeless ready tires and rims
- Clears up to 29” x 2.4” tires
Built for bikepacking, mountain touring, rough dirt, and off-road exploration, Radar is a go-anywhere platform for riders who prefer the path less traveled.
Breezer Bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow the assembly video and take your time, you can build the bike yourself.
Watch Assembly Video
Full Equipment: Radar Sport
Specifications
FRAME & FORK
Frame: Breezer 4130 Butted Chromoly Steel, tapered head tube 1 1/8” to 1 1/2”, 148mm rear spacing, UDH compatible, three pack mount on top of down tube and driveside seatstay, bottle mount on seat tube and bottom of down tube, bento box mount on to tube,fender and rear rack mount, flat mount disc brake
Fork: Breezer 4130 Chromoly, tapered 1 1/8 to 1 1/2 steerer tube, three pack mount on each fork leg, fender mount, 15 x 110 thru axle drop out, 51mm offset, flat mount disc brake
DRIVETRAIN
Crankset: Alloy crank, 170mm XS-L, 175mm XL-XXL, steel narrow side chainring 34T
BB: Outboard cartridge bearing
Rear Derailleur: Shimano Deore Shadow Plus, 12 speed
Right Shifter: Shimano Deore Rapid Fire Plus, 12 speed
Cassette: Shimano Deore 10-51T
Chain: KMC x12 EPT Anti Rust
WHEELSET
Rims: WTB ST i30 TCS 2.0, 32H, tubeless ready
Spokes: Pillar, 14 gauge, butted
Front Hub: KTi, sealed cartridge bearing, Center Lock
Rear Hub: KTi, sealed cartridge bearing, Center Lock, Microspline
Tires: WTB Nineline 29 x 2.25 TCS Light/Fast rolling 60 TPI
BRAKES
Brakes: TRP HD-R803
Brake Levers: TRP HD-R803
Front Rotor: TRP Center Lock, 180mm
Rear Rotor: TRP Center Lock, 160mm
COCKPIT & CONTACT POINTS
Handlebar: Alloy, 780mm width, 15mm rise, 9° backsweep, 31.8 clamp diameter
Grips: WTB Burr single sided lock on
Stem: Alloy, 45mm reach XS-L, 55mm reach XL-XXL, 31.8mm clamp
Headset: FSA
Saddle: WTB Solano medium, chromoly rail
Seatpost: 6061 aluminum 27.2 x 350mm
Seatpost Clamp: Alloy, 35mm
FIT & DETAILS
Color: Low Pressure (Glossy Gray)
Weight: 30.4 lbs (Size Large)
Geometry
XS (48cm)
Seat Tube (C–T): 480
Effective Top Tube: 580
Head Tube Length: 120
Seat Tube Angle: 74°
Head Tube Angle: 69°
Chainstay: 444
Wheelbase: 1098.9
BB Drop: 75
Fork Offset: 51
Stack: 571.1
Reach: 416.2
Standover: 779
Wheel Size: 29”
Seat Post Diameter mm: 30.9
Rider Min Height: 5'0”
Rider Max Height: 5'3"
S (52cm)
Seat Tube (C–T): 520
Effective Top Tube: 590
Head Tube Length: 140
Seat Tube Angle: 73.5°
Head Tube Angle: 69°
Chainstay: 444
Wheelbase: 1105.2
BB Drop: 75
Fork Offset: 51
Stack: 589.8
Reach: 415.3
Standover: 811
Wheel Size: 29”
Seat Post Diameter mm: 30.9
Rider Min Height: 5'3”
Rider Max Height: 5'7"
M (54cm)
Seat Tube (C–T): 540
Effective Top Tube: 600
Head Tube Length: 155
Seat Tube Angle: 73°
Head Tube Angle: 69°
Chainstay: 444
Wheelbase: 1110.6
BB Drop: 75
Fork Offset: 51
Stack: 603.8
Reach: 415.4
Standover: 828
Wheel Size: 29”
Seat Post Diameter mm: 30.9
Rider Min Height: 5'8”
Rider Max Height: 5'10"
L (56cm)
Seat Tube (C–T): 560
Effective Top Tube: 610
Head Tube Length: 170
Seat Tube Angle: 73°
Head Tube Angle: 69°
Chainstay: 444
Wheelbase: 1121.7
BB Drop: 75
Fork Offset: 51
Stack: 617.8
Reach: 421.1
Standover: 845
Wheel Size: 29”
Seat Post Diameter mm: 30.9
Rider Min Height: 5'10”
Rider Max Height: 6'0"
XL (58cm)
Seat Tube (C–T): 580
Effective Top Tube: 620
Head Tube Length: 180
Seat Tube Angle: 73°
Head Tube Angle: 69°
Chainstay: 444
Wheelbase: 1132.5
BB Drop: 75
Fork Offset: 51
Stack: 627.1
Reach: 428.3
Standover: 859
Wheel Size: 29”
Seat Post Diameter mm: 30.9
Rider Min Height: 6'0”
Rider Max Height: 6'2"
XXL (60cm)
Seat Tube (C–T): 600
Effective Top Tube: 640
Head Tube Length: 190
Seat Tube Angle: 73°
Head Tube Angle: 69°
Chainstay: 444
Wheelbase: 1153.2
BB Drop: 75
Fork Offset: 51
Stack: 636.5
Reach: 445.4
Standover: 874
Wheel Size: 29”
Seat Post Diameter mm: 30.9
Rider Min Height: 6'2”
Rider Max Height: 6'5"
The Radar Calls You Home
When conditions stagnate, the Radar keeps you going.
Movement maintains hope when the dirt turns to mud, the skies close in, and the rain won't stop falling down.

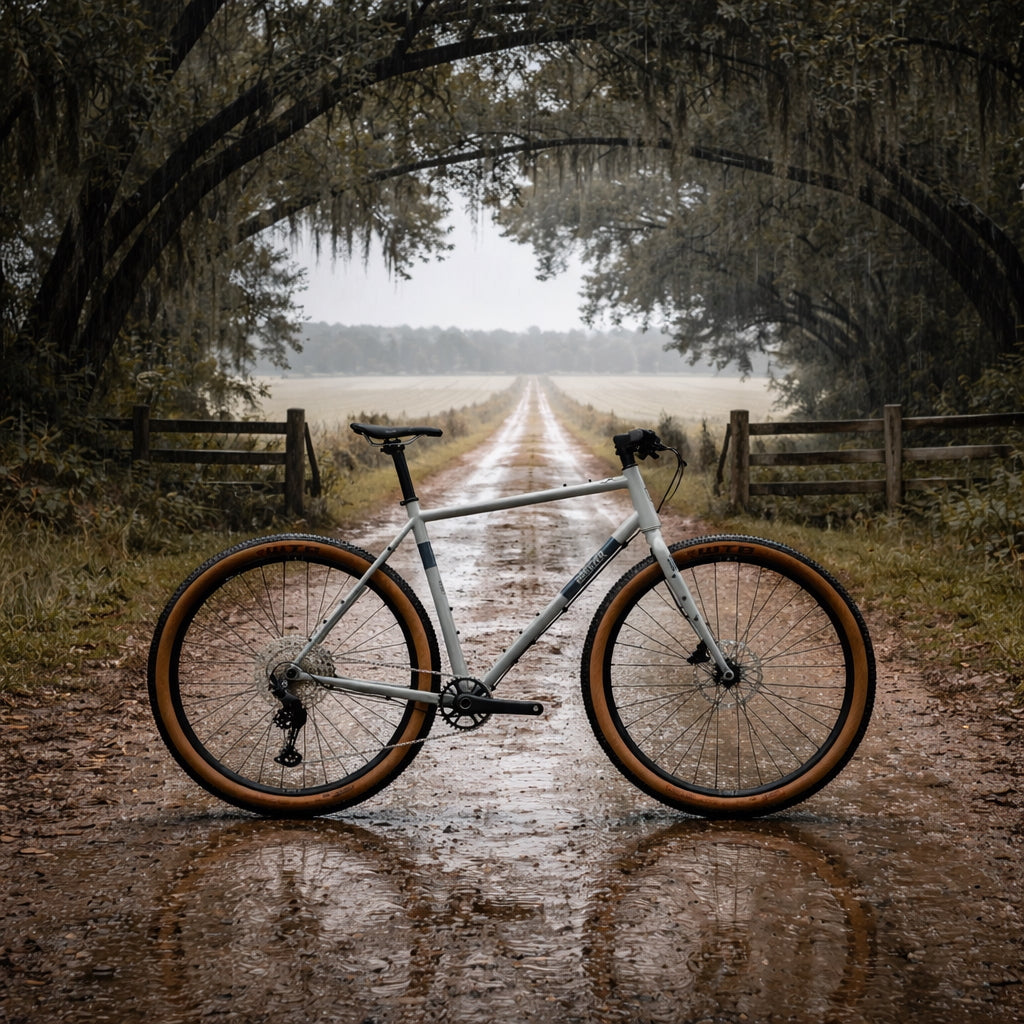

Off-Road Geometry in Butted Chromoly Steel
A frame that knows the road, so you can be the judge.
Radar’s geometry is created for preservation when the road gives more than it takes. As dirt washes away, paths blur, and progress feels immovable, the foundation remains something you can believe in.

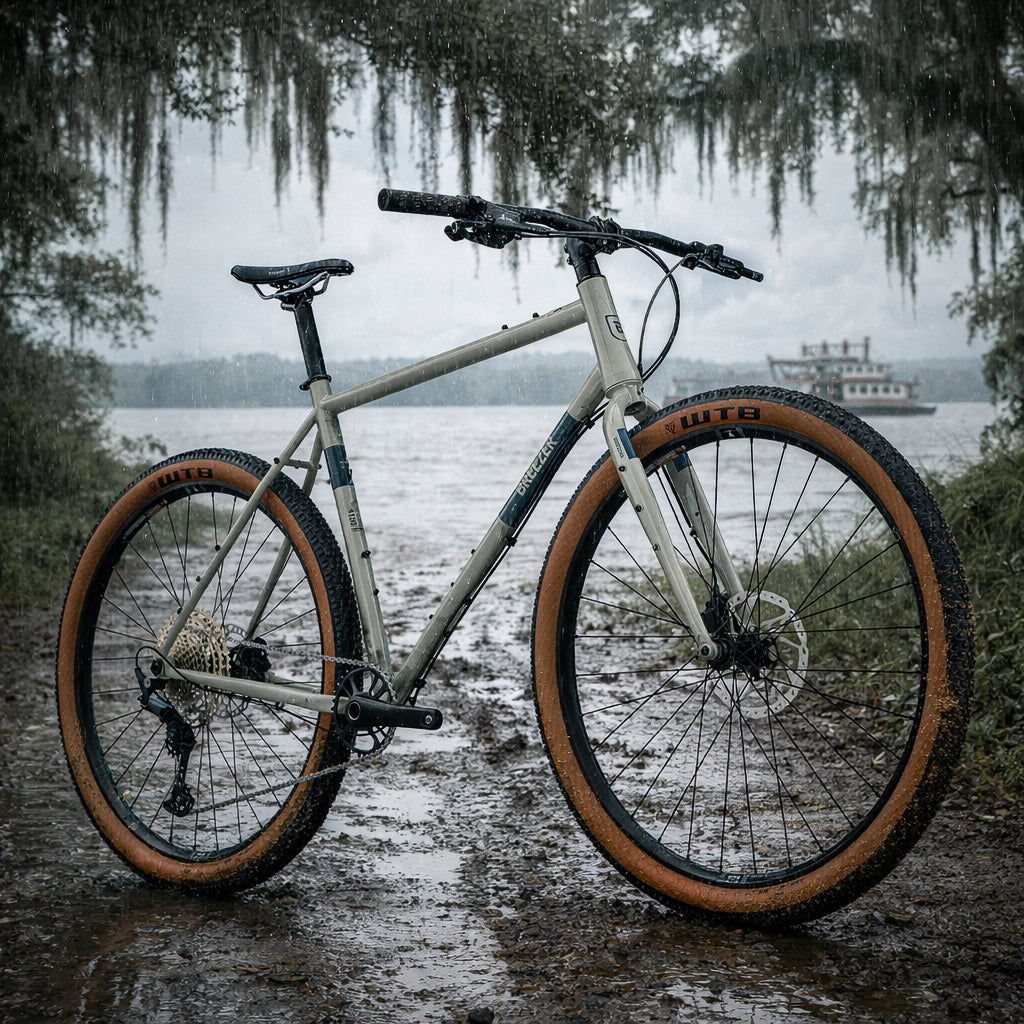

Tubeless-Ready for Lower Pressures
Not every crossing moves on your schedule.
WTB tubeless-ready rims coupled with WTB NineLine 29 × 2.25” tires, allow lower pressures for consistent contact when movement slows and surfaces saturate. Clearance for up to 29 × 2.4” tires keeps growth possible when patience, not speed, explain the ride.

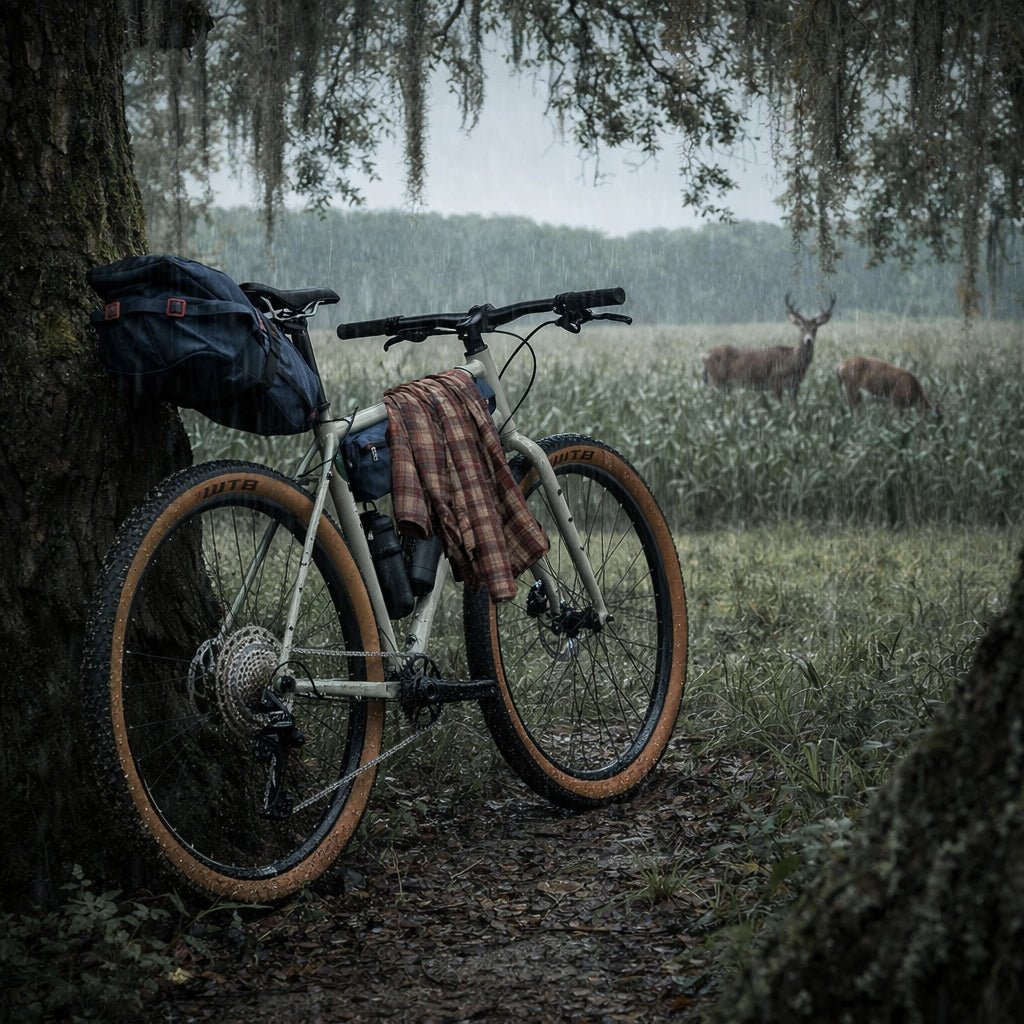

Equipped for Extended Coverage
Built to support a wide range of field operations.
Five bottle cage mounts, rack and fender mounts, and triple-mount positions on the seat stay and fork allow our Radar Sports to carry the equipment needed to stay on assignment longer. From water and tools to bags and supplies, the system is designed to adapt to changing demands without compromising mobility or focus.
Signal in Motion
A dependable transmission built for sustained forward progress.
A Shimano Deore Shadow Plus rear derailleur paired with a wide-range Shimano Deore 10-51T cassette delivers smooth, reliable drive across varied terrain and long routes. An alloy 36T crankset keeps cadence controlled and power predictable, resulting in a drivetrain designed to move the sport forward without interruption.
Off-Road Geometry in Butted Chromoly Steel
A frame that knows the road, so you can be the judge.
Radar’s geometry is created for preservation when the road gives more than it takes. As dirt washes away, paths blur, and progress feels immovable, the foundation remains something you can believe in.
Tubeless-Ready for Lower Pressures
Not every crossing moves on your schedule.
WTB tubeless-ready rims coupled with WTB NineLine 29 × 2.25” tires, allow lower pressures for consistent contact when movement slows and surfaces saturate. Clearance for up to 29 × 2.4” tires keeps growth possible when patience, not speed, explain the ride.
Equipped for Extended Coverage
Built to support a wide range of field operations.
Five bottle cage mounts, rack and fender mounts, and triple-mount positions on the seat stay and fork allow our Radar Sports to carry the equipment needed to stay on assignment longer. From water and tools to bags and supplies, the system is designed to adapt to changing demands without compromising mobility or focus.
Signal in Motion
A dependable transmission built for sustained forward progress.
A Shimano Deore Shadow Plus rear derailleur paired with a wide-range Shimano Deore 10-51T cassette delivers smooth, reliable drive across varied terrain and long routes. An alloy 36T crankset keeps cadence controlled and power predictable, resulting in a drivetrain designed to move the sport forward without interruption.
